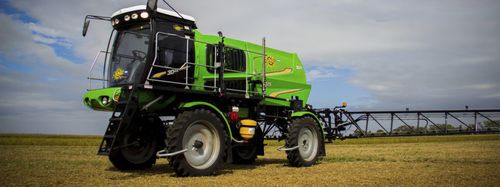

Self-propelled sprayer MÚLTIPLE 3025

hydraulicfolding arms

Every METALFOR machine provides security, comfort and versatility for overall efficiency. This machine is equipped with modern elements and advanced technology, allowing you to perform all the functions it has been designed for, quickly and easily. CAB Spacious cab with glazed surface for greater vision, adjustable steering column, adjustable seat, air conditioning with activated carbon filter. TANK Fiber glass tank, with a capacity of 3000 L, hydraulic mixer powered by a manual valve. SPRAYING SYSTEM Spraying pump with electrical pulley, triple cleaning filter in the pressure circuit. Fivefold nozzle system with 3 sets of discs at 35 cm, and singles at 52 cm with blind covers for liquid fertilizer application, flow-regulating computer with 5 breakaway sections, clean-water rinse tank for personal hygiene. SPRAYING BOOM Tubular structure of 25 m real working width, frame lifting system on a parallelogram with double lifting brackets and broad angular movement, stainless steel pipes. LOADING SYSTEM Loading motor pump of 5 hp, product mixer with drum washer, quick coupling for water fill and machine cleaning. TIRES 12.4 x 36 radial tires and fixed tread width of 2.10 m. ENGINE 120-hp 2,300 rpm Deutz / Cummins engine. FUEL TANK 200 L, made of plastic. MECHANICAL TRANSMISSION 5-speed + reverse Eaton gearbox, Eaton differential front and rear wheel drive. BREAKS Four-wheel disk brakes with caliper and electro-pneumatic parking brake. HYDRAULIC SYSTEM Electrohydraulic controls with independent switches inside the cab, nitrogen accumulators for circuit protection, hydrostatic steering system.
