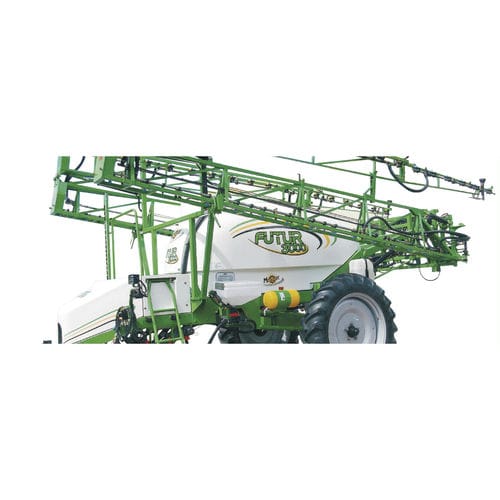

Pull-type sprayer FUTUR 3000

hydraulicfolding arms

The FUTUR 3000, a pull-type sprayer from METALFOR, is a machine equipped with modern elements and advanced technology, allowing you to perform all the functions it has been designed to perform, quickly and easily. WHEEL TREAD SPACING Double tensor to withstand great demands. Air suspension with shock absorbers. Cross stability bar to avoid sideways movement of chassis and boom. Fixed tread width of 2.10 m and adjustable tread width from 2.60 to 2.80 m. CHASSIS Tubes 6 mm thick. Robust frame elevating system. Anti-corrosion treatment with Epoxy coating. Front hood to protect spraying pump and commands. TANK Wrapping tank with capacity of 3,000 L, set to keep a uniform mixture, made of fiber glass. 110 L additional tank for cleaning the equipment. Tank inside cleaning with rotary system. Double-acting hydraulic mixer. BOOM Auto-leveled boom, with central suspension using nitrogen. 25 m working width with vertical folding, protective skids and quick return system fitted at the ends. SPRAYING CIRCUIT Control and threshing solenoid valves with 5 breakaway sections. Auxiliary command with mixing pressure control. Udor RO 160 1C Diaphragm Pump with 4 pistons of 160 L/min. And a maximum pressure of 20 bar. 20 L folding product mixer. With rinsing and drum washer. Electrical general switch and by sections, min. 71 single nozzles at 0.35 cm and at 0.52 cm with blind covers for application of liquid fertilizer, mounted on stainless steel pipes of ¾. Suitable for application of liquid fertilizers. HYDRAULIC CIRCUIT Electrohydraulic boom regulation. Nitrogen lung with new calibration system.
