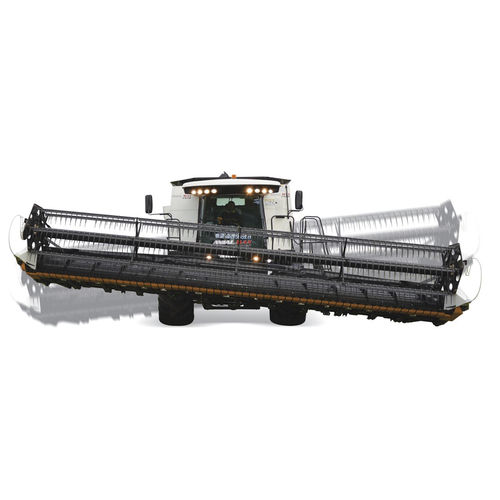

Axial-flow combine MAX 1475

grain

A class 7 combine of great performance, single longitudinal rotor threshing system, assisted by a clean grain roller chain and a chaffer. This configuration allows the combine to have a great performance in any kind of crops, and even in difficult conditions. HEADER Cutter bar width: 30 (ft) – 9.10 (m) Fast coupling and flexible, automatic height cut bar control. Speed reel control. Ground speed control. Approximate platform weight 3,200 kg. TRANSMISION Hydrostatic single traction, or optional 4-wheel-drive. 3 forward speeds, 3 reverse speeds. Hydraulic disk brakes. Pneumatic parking brake. ENGINE Scania, DC9 72 A 9lts, 350 hp. Unloading power of 370 hp. at 1,900 rpm. 5 cylinder electronic engine. Fuel capacity of 870 L. THRESHING UNIT Axial flow threshing system with hydrostatic rotor and reverser. Rotor diameter of 760 mm. Rotor length of 3,150 mm. Electrohydraulic rotor with adjustable speed system. Rotor speed range, 0 to 750 rpm on front wheel drive – 0 to 1050 rpm on rear wheel drive. SEPARATING UNIT 3 threshing concaves. Total concave area of 1.1 m2. 4 separating concaves. Total separating area 1.9 m2. CLEANING UNIT Total cleaning area of 4.55 m2. Fan speed of 600 – 1200 rpm. The fan speed can be electrically adjusted. Standard re-thresher system. Adjustable sieve and chaffer. HOPPER Hopper tank of 10,000 L. Unloading rate 4,800 L/min. FEEDING Conveyor chain length of 1,800 mm. Conveyor chain width of 1,400 mm with lateral and vertical tilt. Electrohydraulic reverser. FEEDING CONTROL Clean grain roller chain/Stone trap. Rotation speed of 440 – 800 rpm. Standard stone trap.
