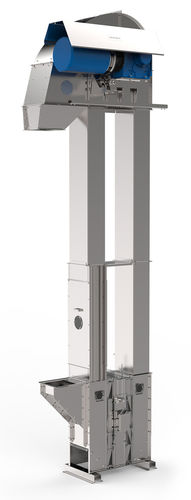

Bucket elevator ET series

Ideal for vertical handling of cereals, oilseeds and legumes, the Metalmont ET series bucket elevators stand out for their highly reliable operation and performance. Designed and built to ensure the best performance even in the most difficult working conditions, and to minimise maintenance and total operating costs. RANGE from 20 to 400 t/h – different flow rates available on request HEAD (DRIVING WHEEL) •Helical bevel gearmotor: hollow shaft with direct coupling to the driving shaft; back-stop device; cover •High resistance steel driving shaft •Rubber-coated pulley and rounded for conveyor belt centring •Supports with self-aligning ball bearings shielded and lubricated with high-performing grease •Upper cover openable for inspection and maintenance •UHMW polyethylene coating of the material discharge area •Discharge hopper with square outlet •Inspection porthole •Belt misalignment sensor BUCKETS •High-density polyethylene (HDPE) •High resistance to abrasion •Excellent resistance to impacts •Suitable for food BELT •Multilayer with rubber cover and reinforcement plies •Anti-oil and anti-grease according to international standards •Antistatic according to international standards •Flame-retardant according to international standards
