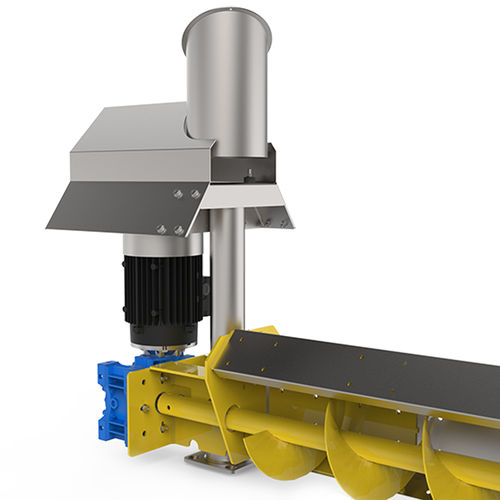

Grain conveyor CS series

screw

Ideal for handling oilseed cereals and legumes and used to completely empty the storage silos, the Metalmont sweeping screws stand out for their construction quality. Metalmont designs and builds its sweeping screws to minimise maintenance costs and total operating costs. RANGE from 30 to 80 t/h – different flow rates available on request Also available in the ATEX 21 versions, according to the area classification by the customer. HEAD •Protective guard for the motor •Rotating contact for motor feeding •Sturdy structure •Pin to guide the planetary rotation of the screw body AUGER •Variable thickness propeller, spot weldedi/li> •High-resistance and low friction plastic intermediate supports TAIL END •Support with self-aligning ball bearing shielded and lubricated with high-performing grease •Equipped with mechanism for the step-by-step planetary feeding; optional with wheel •Very sturdy structure FRAME •Very sturdy structure FLOW RATE ADJUSTMENT STRAP
