Ultrasonic flow meter 190F

irrigationwith data loggerfor water

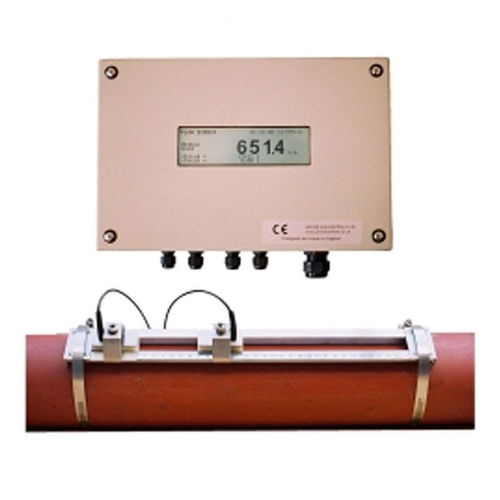

The 190F Ultrasonic Flow Meter is a fixed transit time, clamp-on ultrasonic flow meter designed for liquid flow measurement, especially where sterile conditions prevail and any invasion of the pipework could cause contamination. In particular, the 190F is an economical solution to flow measurement in larger pipe applications and can be attached to pipes up to 6500 mm diameter. Based on in-depth experience in ultrasonic flow technology, the 190F is a high precision meter, which can be configured and operational within minutes. Features of the 190F Ultrasonic Flow Meter include: A cost effective clamp-on non-invasive ultrasonic flow meter Analog and digital outputs Data logger with local display of data (graphically or as text) Bi-directional measurements, with totalisation in positive and negative flow directions Built in help Automatic liquid speed of sound measurement and Reynolds Number flow profile correction Measures flow rate within a pipe without cutting the pipe Latest correlation signal detection system Easy to attach clamp-on sensors Zero head loss results in improved pumping efficiency Clearly laid out high tactile response keypad Large measuring range with no complicated upper velocity Suitable for all commonly used sonically conductive pipe materials and liquids Accuracy ±1 to ±2% or ±0.02 m/sec whichever is the greater, depending on application Various sensor and clamping options available for non standard applications Further applications of the 190F include: Pump efficiency Pharmaceutical production research Water consumption Can be used as a heat energy meter when combined with the ICT Heat Energy Calculator
