Irrigation flow meter ICT

battery-operatedfor water

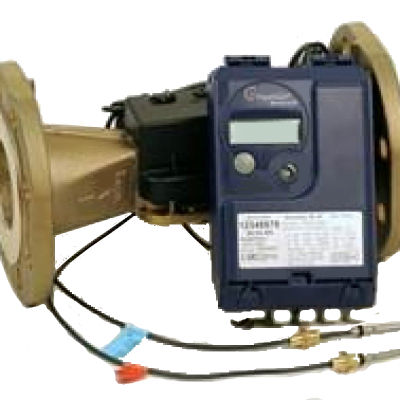

ICT Heat Meter for HVAC Building Services is an all in one in line compact heat meter (also known as a heat integrator, BTU meter or energy meter) that is used to measure in kw/hr the energy used to heat water. It is economical solution for flow rates up to 2.5m3/hr. ICT Heat Meters have a choice at the time of ordering of a pulsed output in kw/hr or an Mbus output. Features of the ICT Heat Meter for HVAC Building Services include: • MID Approved • EEC Class C Approved • BMS output [optional] • Pulsed output [Kw/hr] or M-bus output • 3 versions: 0.6m³/hr, 1.5m³/hr or 2.5m³/hr • Battery operated [6 year life] • IP54 protection rating • Vertical or horizontal mounting • Temperature range: 25 – 90°C • Ambient temperature: 0 – 55°C • Temperature resolution: 0.01°C Other Applications: • Heat exchangers • Heating systems • Billing • District heating • Chilled water • General HVAC For larger flow rates use a multi jet or Woltmann hot water meter (or a cold meter for chilled water applications) in conjunction with a wall mounted heat energy calculator. Also, 2 temperature pockets must be used, one for flow and the other for return.
