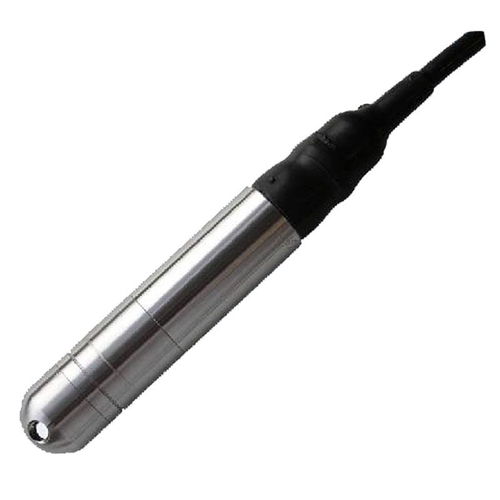

Water level sensor IC IMSL

The IMSL Submersible Level Transmitter is ideal for submersion in liquids such as water, oil and other non aggressive chemicals for extended periods of time. The submersible uses the latest piezo-resistive media isolated silicon sensing technology and a stainless steel diaphragm it offers excellent stability, repeatability and resolution required for use in rivers and reservoir measurement. Housed within a 316L stainless steel housing, this submersible level transmitter is the ideal product for reliable and repeatable hydrostatic level measurement. Every device is temperature compensated and calibrated, supplied with a traceable serial number and calibration certificate. The electronics incorporate a microprocessor based amplifier, this means there are no adjusting pots and therefore the electronics are very stable. ​ Features of the IMSL Submersible Level Transmitter include: • Wide range of use in submersible conditions • Very easy to install • Accuracy: <±0.1 % Span BFSL; <±0.6 % Span BFSL (optional) • Pressure ranges from 0.5mWG to 100mWG • Selection of housing & cable materials to achieve maximum media compatibility • Variety of outputs including mV, Volts and mA • Temperature compensated and calibrated • Supplied with a traceable serial number and calibration certificate General Applications: • River level • Reservoir level • Tank Level • Borehole level • Aquifer Level • Environmental monitoring • V-notch weir flow measurement
