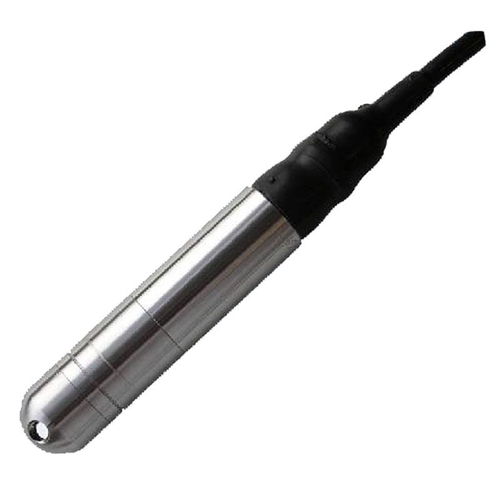

A hydrostatic level transmitter with SDI-12 protocol output via the SDI-12 RS232 interface, fully submersible with measurement ranges from 0.5mWG up to 200mWG. Temperature measurement is made in addition to the level measurement via the SDI-12 interface using standard SDI-12 commands, <±0.1% FS accuracy. Options on the IC-S12S level transmitter include the following pressure range and engineering units, pressure reference (G, SG or Abs), cable material, O ring seal material.
Features of the S12S Level transmitter include:
• Highly stable piezo-resistive pressure sensor
• Accuracy: <±0.1% FS Total Error
• ranges from 0.5mWG to 100mWG
• Gauge, Sealed Gauge or Absolute reference
• Level and Temperature output as standard
General Applications:
• River and reservoir level
• Tank and vessel level
• Borehole level
• Environmental monitoring
• V-notch weir flow measurement
