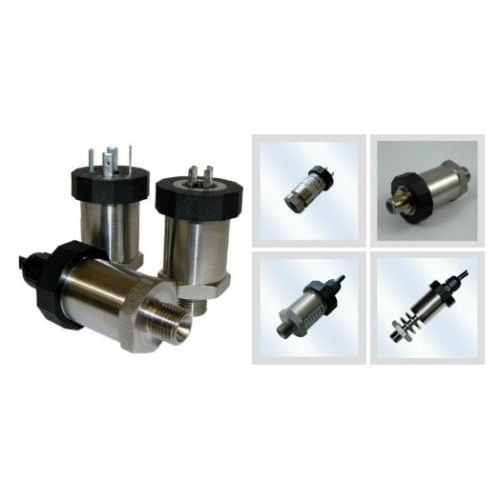

Pressure sensor IC-IMP

The IC-IMP industrial pressure transmitter has a piezo‐resisitive ceramic pressure sensor giving it excellent media compatibility. The housing is made from stainless steel with a choice of internal O ring seals to select to ensure the product is suitable for a wide range of applications. Every device is temperature compensated and calibrated and supplied with a traceable serial number and calibration certificate. The electronics incorporate a microprocessor based amplifier, this means there are no adjusting pots and therefore the electronics are very stable, especially in high vibration / shock applications. Features of the IMP pressure transmitter include: • Compact and rugged construction • Stable, repeatable and reliable output • Compensated ceramic technology • Pressure ranges from 0.5 to 700 bar • Gauge, sealed gauge or absolute referenc • Accuracy: <±0.25% FS BFSL (0.1% optional) • Variety of outputs including mV, Volts and mA • Cost effective for OEMs and end users • High shock & vibration resistance • Specials available on request Typical Applications: ​ • Pneumatic & hydraulic control • Machine tools / presses • Tank level measurement • Process control • Medical equipment • Compressors / pumping • Laboratory / calibration references • Heating and ventilation
