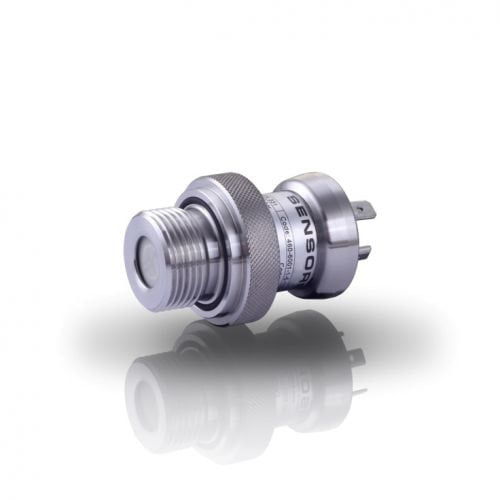

Pressure sensor LMK 331

The LMK 331 screw-in pressure transmitter has been specially designed for level and process measurement. Due to the semi flush mounted pressure sensors the LMK 331 can also be used in viscous or contaminated media. The ceramic sensors feature high compatibility against aggressive media. The sensor is sealed against the pressure port depending on the nominal pressure range with FKM or NBR seals as standard. Other elastomers are available. Pressure port material is alternatively stainless steel 1.4571 (316Ti), or, for particularly aggressive media, PVDF or PVC. For process measurement applications different process connections are available on request. Additionally it is possible to use the screw-in transmitter LMK 331 in explosive area (zone 0). Features of the LMK331 Pressure Transmitter include: • Ceramic sensor without oil-filling with high resistance against aggressive media, e.g. acids and lye • Flush diaphragm • Pressure ports in stainless steel, PVC, or PVDF • Accuracy 0.25% FSO BFSL (0.5% FSO IEC 60770) • Nominal pressure ranges from 0 – 160 mbar up to 0 – 60 bar • Small thermal effects • Good long term stability • Optional Ex-version (only for 4 ¦ 20 mA / 2-wire) • Customer specific versions with special pressure ranges available Typical Applications: • Tank level measurement • Water and sewage treatment • Paper industry • Chemical industry
