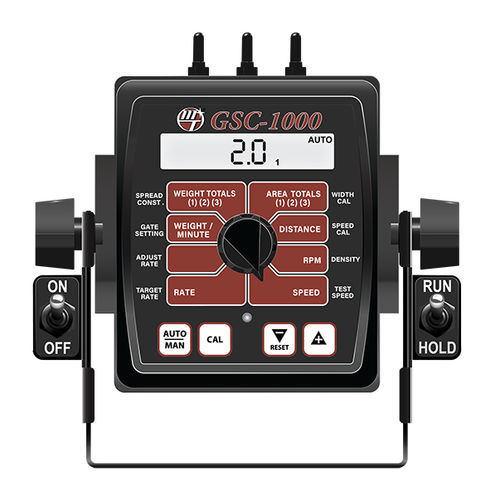

On-board crop input controller GSC-1000™

for tractors

The GSC-1000 from Micro-Trak is a low-cost high performance easy-to-use dry rate controller that not only controls product rate, but also has an optional RPM input. Once the spreader constant has been determined by a simple calibration procedure, product density or gate setting can be changed by simply entering calibration and changing the density or gate height; no need to re-calibrate the spreader constant. Alternately the GSC-1000 can be easily and quickly configured to do non-ground speed based spinner RPM control. GSC-1000 Operational Features: •3 independent Area and Volume counter pairs that can be used to record your daily, weekly & seasonal totals. •No Flow and No Speed messages to quickly alert operator of fault. •Displays Bin Level so operator always knows how much product is remaining (also has settable low bin alarm). •Monitors spinner RPM for accurate spread pattern. Displays Weight per Minute of product being applied. •Displays distance in feet for quick verification of Speed input accuracy. •Displays Rate of product applied down to one hundredth of a pound for ultra low rate accuracy. •Automatically stops apron if No Flow is detected and alerts operator to prevent over applying product. •Can be configured to control either the apron rate or spinner RPM.
