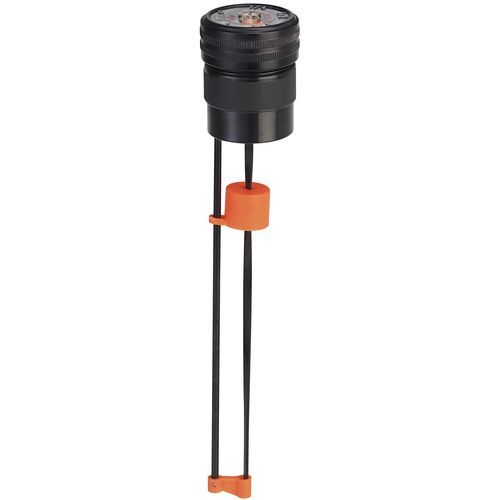

Level sensor with float system TRBF/LG series

visual

Composed of aluminium alloy female cover without treatment with visual dial in black polyamide. It is screwed on burnished steel sleeve which is welded onto the machine cover or tank. Complete with float system, it allows an exact and constant indication of the level of fluid inside. Especially designed for application on agricultural, earth moving, building machinery and hydraulic units. By request with vent hole or supplied with or without sleeve. Recommended temperature: 0°C / +80°C. Recommended pressure: 2 bar MAX Avoid contact with alcohol, solvents and paints on transparent window. On request available in different colors and with customized lengths (min. 200 mm / max. 600 mm). For lengths greater than 500mm a reinforced float is provided.
