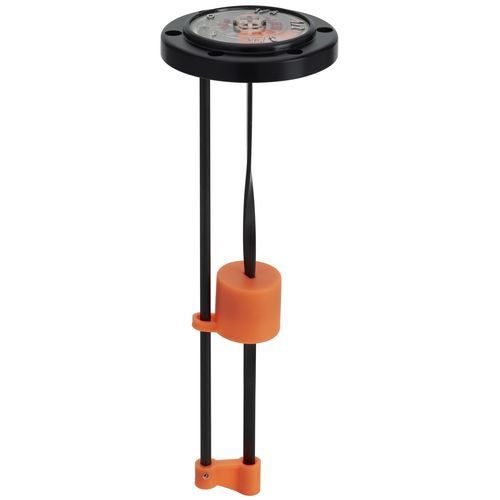

Level sensor with float system LGF68 series

visual

Composed of aluminium alloy flanged cover without treatment with visual dial in polyamide. Applicable to holes 50 to 54 mm. Complete with float system, it allows an exact and constant indication of the level of fluid inside the tank. Supplied with O-ring and allen inox screw M4 for the fixing. Especially designed for application on agricultural, earth moving, building machinery and hydraulic units. Recommended temperature: 0°C / +80°C. Recommended pressure: 2 bar MAX Avoid contact with alcohol, solvents and paints on transparent window. On request available in different colors and with customized lengths (min. 150 mm / max. 600 mm).
