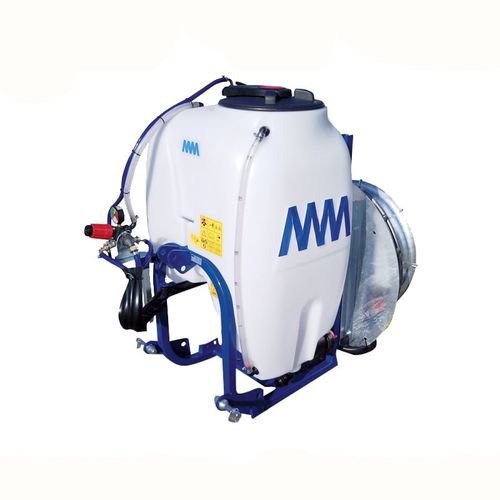

Mounted agricultural atomizer M2302009
for viticulturefor arboriculturepneumatic

mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Application
for viticulture, for arboriculture
Other characteristics
pneumatic, for greenhouse
Capacity

200 l
(52.8 gal)

Pump capacity

55 l/min
(14.5 us gal/min)

Pump pressure

40 bar
(580.2 psi)

Description

These machines are conceived for treatments with products for the phytosanitary protection in vineyards and orchards of different size. Thanks to their versatility it is possible to connect different accessories, such as different types of spraying lances. 200 L ATP models are one-of-a-kind to have included a double third point linkage, very handy for the applications on small tractors. The low pressure required makes the 200 L ATP airblast sprayer suitable for the application on small- low power tractors (only 16/18 HP). Sophisticated design in typical Italian style, Line and compact profiles to allow easy handling and operation in very small spaces. COMPACT DESIGN: all the tanks (main tank, hand wash tank and system washing tank) are completely integrated in the machine and rounded to avoid any damage to branches and buds. Standard technical specifications -Hot galvanized steel tubular frame -Width: only 75 cm -Three-point linkage (Type 0 or minor) -200 L polyethylene total drain tank with hinged lid and level scale -Hand washing tank -Suction fi lter with valve -Remote pressure regulator -Anti-pollution ejector -Hot galvanized Ø 500 mm fan unit with nylon glass adjustable blades -One-speed gearbox with declutch and neutral position -Stainless steel nozzle holder hoses -10 anti-drip brass jets with 1,00 mm ceramic nozzles
