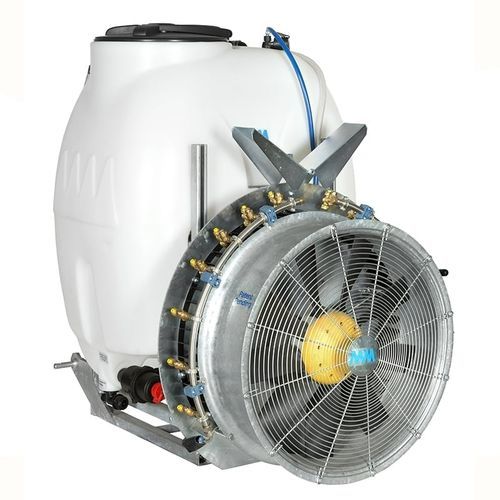

Mounted agricultural atomizer M2304 series
for viticulturefor arboriculturefor row crops

mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
mounted agricultural atomizer
Add to favorites
Compare this product


Characteristics

Mobility
mounted
Application
for viticulture, for arboriculture, for row crops
Other characteristics
for greenhouse
Capacity

400 l
(105.7 gal)

Pump capacity

55 l/min, 80 l/min, 105 l/min
(14.5 us gal/min, 21.1 us gal/min, 27.7 us gal/min)

Pump pressure

40 bar, 50 bar
(580.2 psi, 725.2 psi)

Description

These machines are conceived for treatments with products for the phytosanitary protection in vineyards and orchards of different size. Thanks to their versatility it is possible to connect different accessories, such as different types of spraying lances. The 400 L ATP models are the perfect solution for those who have to treat their cultivations professionally having the possibility to set up them according to their own working needs. Sophisticated design in typical Italian style, Line and compact profiles to allow easy handling and operation in very small spaces. COMPACT DESIGN: all the tanks (main tank, hand wash tank and system washing tank) are completely integrated in the machine and rounded to avoid any damage to branches and buds. Standard technical specifications -Hot galvanized steel tubular frame -Width: only 95 cm -Three-point linkage (type 1 or bigger) -400 L polyethylene total drain tank with hinged lid and level scale -Hand washing tank -Suction filter with valve -Remote pressure regulator -Anti-pollution ejector -Hot galvanized Ø 620 mm fan unit with 8 nylon glass adjustable blades -One-speed gearbox with declutch and neutral position -Stainless steel nozzle holder hoses -10 anti-drip brass jets with 1,20 mm ceramic nozzles
