Big bag lifter

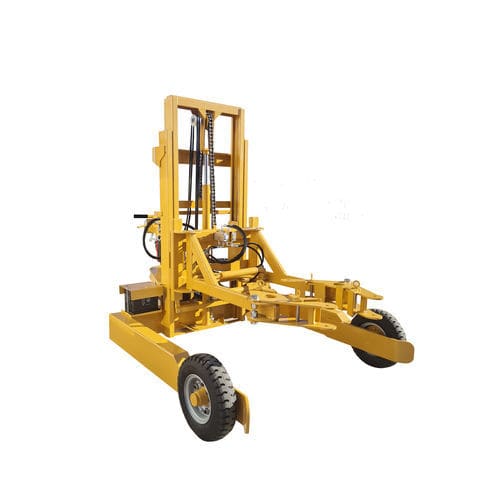

Description The IDRO 2000 HYDRAULIC LIFT is an innovative system that, thanks to its specially equipped forks, is ideal for lifting and moving C.C. trolleys and Euro pallets. By substituting the forks with a specifically designed accessory, the IDRO 2000 is capable of handling “big bale” soil bags. This unit is supplied with a 6.5 Hp 4-stroke petrol engine with either pull start or electric ignition that provides the drive power to the rear drive wheel, self-braking safety mechanism and anti-crush button as well as supplying the columns’ lifting power. The lift’s shifting movements are achieved through a hydraulic motor equipped with a self-braking overcentre valve. The backward and forward movement of the IDRO 2000 is controlled by hydraulic control levers. The IDRO 2000 with its double fork lifting unit can raise up to 13 hundredweight (1300 Kg) up to a fork height of 2 metres above ground. By means of the distinctive steel structure fitted with hooks at the ends (optional), the IDRO 2000 is capable of raising “big bale” soil bags up to 3,75 meters. Main – 6.5 Hp Honda petrol engine with either pull start or electric ignition – Maximum fork raising height 2 m – increasing to 3,75 m with big bale structure – Hydraulic controls for fork lifting and shifting – Hydraulically actioned rear drive wheel with self braking safety mechanism Technical WEIGHT: 600 Kg DIMENSIONS Length: 2300 mm DIMENSIONS Width: 1680 mm DIMENSIONS Height: 1680 mm COLUMN HEIGHT: 1500 mm MAX LOAD CAPACITY: 1300 Kg Optional – Steel structure for “big bale” soil bag lifting – Clamp for pots diam. 500/1000 mm
