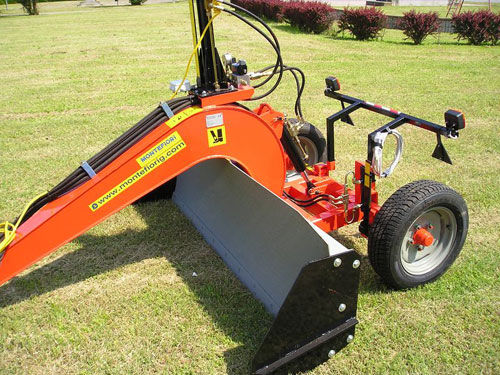

Field preparation leveler LUCCIOLA

hydraulic

With stationary axle, not enlargeable – single wheels. It is a construction of high technology. Encased chassis like a gooseneck, with wide light between blade and chassis, that allows containing a large quantitative of earth and at the same time it carries out a tumbling of it, perfect and fast. It was born for leveling inside of greenhouses, gardens, sport fields, large squares and in means to tree-lined cultivations. Perfect for powers from 40 HP and more. The width of the standard blade is 1.60 meters, with possibility to extend up to 2.40 meters. TECHNICAL DATA 1. System controlled manually directly from the tractor. 2. Automatic control system using lasers under the hydraulic controls of the tractor. 3. Completely separate auxiliary control system with tank and p.t.o. driven independent pump. OPTIONAL • upper blade width from 1.60 m. up to 2.40 m. • n.01 middle shaft for laser receiver with valve of block with excursion of 800 mm • n.01 middle shaft for laser receiver with valve of block with excursion of 500 mm • blade inclination (n. 01 jack complété of pipes and switches) Technical spécifications . Power 25/80 HP • Width blade in working trim 1.60 / m 2.40 • Width wheels in working trim 1.35 /1.80 m • Overall dimensions in road trim 1.60 / m 2.40 • Height of the blade 0.70 m • Overall length 2.80 m • Weight with blade m 2.40 Kg. 630 • Wheel type and number of wheels LG306 23 x 10.50-12 No. 02
