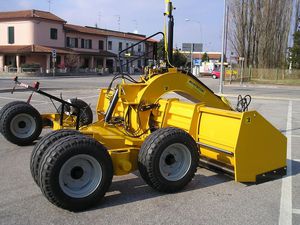

Field preparation leveler

hydraulicfront-end

FRONT BLADE full hydraulically controlled as a grader. Front blade for tractors, with wheels or tracks, with two sections that can be manually folded up for road circulation, and that can be anchored on the central body which is 2.45 meters using threaded tie rods in order to reach a maximum width of 3.5 meters; equipped with removable terminal metallic strips based on the use and work requirements. The blade is made of certified and high quality materials; it is anchored on a frame designed to withstand the high strain and thrust forces. It can be adapted to any type of tractor. All GRADER movements can be performed hydraulically and automatically via the electro-hydraulic controller with in-cabin command using the electrical controller with four movement controls. The blade can be supplied to be used with laser system. Technical spécifications . SIZE IN WORKING TRIM 3,50 m . SIZE FOR THE ROAD CIRCULATION 2.45 m . HEIGHTOF BLADE 1.10m . HYDRAULIC RIGHT INCLINATION 30° . HYDRAULIC LEFT INCLINATION 30° . HYDRAULIC ROTATION FORWARD 30° . HYDRAULIC ROTATION BACK 30° . MAXIMUM HEIGHT FROM THE FLOOR 12.50 m . WEIGHT 1900 kg . No. 01 JACK FOR ROTATION FORWARD - BACK . No. 01 JACK FOR LASER RECEIVER WITH EXCURSION CONTROL VALVE 800 mm. . No. 02 JACK FOR INCLINATION RIGHT/LEFT . No. 01 JACK FOR LIFTING . NO. 01 ELECTRO-HYDRAULIC MANIPULATORTO CONTROL ALL THE MOVEMENTS OF THE BLADE AUTOMATICALLY AND DIRECTLY FROM THE CABIN OF THE TRACTOR
