Dump trailer
single-axleagricultural6 ton

Dump trailer - MTS srl - single-axle / agricultural / 6 ton
Dump trailer - MTS srl - single-axle / agricultural / 6 ton
Dump trailer - MTS srl - single-axle / agricultural / 6 ton - image - 2
Add to favorites
Compare this product


Characteristics

Construction
dump
Number of axles
single-axle
Application
agricultural
Payload
6 ton
Brake system
with mechanic braking
Other characteristic
side-unloading, harvesting

Description

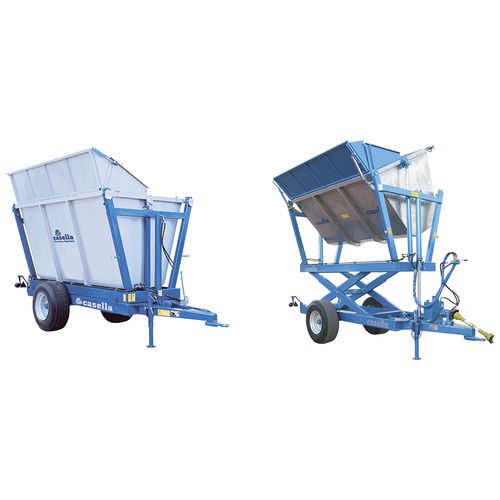

Tomato dump wagons with a 6 ton capacity. 2-way box dump with adjustable height ranging from 2.4 mt to 3.6 mt (CPL 60 model) or rear box dump (CPP 60 model). Mechanically-operated hydraulic brake. Machine technical specifications “Fully lowered” box – flat Tot. lengthmt5,18 Max. widthmt2,04 Axle towing eye distance – wheel axlemt3,55 Rear “overhang”mt1,57 Max. height (empty wagon)mt3,20 Min. height from the ground (fully loaded)mt0,4 Overall mass (empty wagon)kg2.440 Overall mass (fully loaded)kg6.000 Max. mass on towing eye axle (fully loaded)kg676 Max. mass on wheel axle (fully loaded)kg5.324
