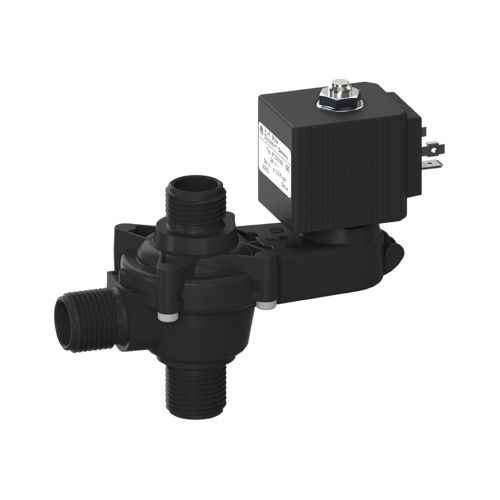

Irrigation valve 47.009.382

for controlelectricplastic

Direct acting 2/2 way solenoid lever valve (normally open) with orifice size DN 9 for control of neutral gases and liquids. The plunger of the magnetic system is protected from the medium by spatial separation. In particular, the low dead space is a further advantage of the lever valves. Valves of this design are single chamber valves with threaded connections. The electrical operational safety is guaranteed by the electrical insulation coordination, which corresponds to the VDE 110 regulations. The manufacturing process includes a 100% electrical safety test in accordance with the VDE 0631 Part 1000 regulations. Due to the use of high quality materials, the valve is applicable for high ambient and medium temperatures up to 90 °C. The good thermal separation between the fluid path and the solenoid coil also allows the use of temperature sensitive media, such as in the medical technology or analytics. This valve is ideally suited for dosing applications. Applications .Tank or boiler draining .Medical engineering .Industrial applications .Laboratory / analysis equipment Characteristics .Direct acting .Suitable for hot water up to 90°C .Long term performance capability .Any fitting position .Easy to assemble and service .Low power consumption .High operating safety by the use of high quality materials .Works from zero pressure .Medium separated .Minimal dead areas in valve body Technical data Type:lever solenoid valve Construction:2/2-way single chamber valve, direct acting, media separated Function:NO (normally open) Fitting position:any, preferably coil pointing upward Media:Cold and heated potable water and physically and chemically similar media
