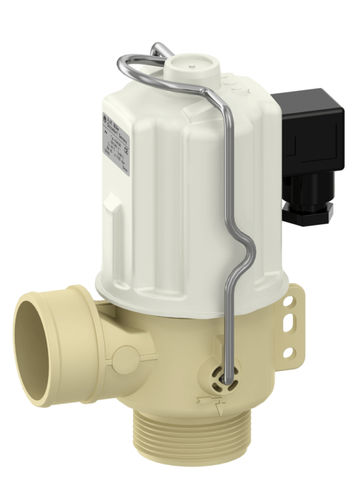

Irrigation valve 04.040.916

for controlfor drainageelectric

2/2-way direct acting dump valve of nominal diameter DN 40 for controlling low aggressive liquid media, such as cleaning or disinfection agents, direct acting with normally open operation mode NO (normally open). Valves of this type are medium separated having a single chamber valve body with the inlet at ninety degrees to the outlet. They can be manufactured in various materials and equipped with threaded or hose connections. Electrical operating safety is achieved by insulation class F and supported by an integrated protective circuit. Protection type IP 68 is achieved in conjunction with cable connection, IP 65 by using a mounted connector. Valve housing made of PPE or stainless steel are suitable for hot water. Valve housing made of PVDF have a higher resistance to chemicals where stainless steel has both features. The smooth internal shape improves liquid flow and avoids dirt traps. The valve bodies can be equipped with an additional flush spout. Applications .Industrial washing machines and dishwashers .Cleaning devices for medical equipment .Cleaning and disinfecting systems in the dairy industry and process engineering Characteristics .Direct acting .Protection type IP 68 using cable, respectively IP 65 using connector .normally open (NO) .Encapsulated coil .Coil system protected against corrosion by separation of medium by membrane .Optional valve body made of PVDF or stainless steel and FKM membrane for higher resistance to chemicals .Optional flush spout on valve body .Long term performance capability .Max. medium temperature 98°C (208°F) .No minimal pressure required .Suitable for spray- and jet water .UL approved versions available
