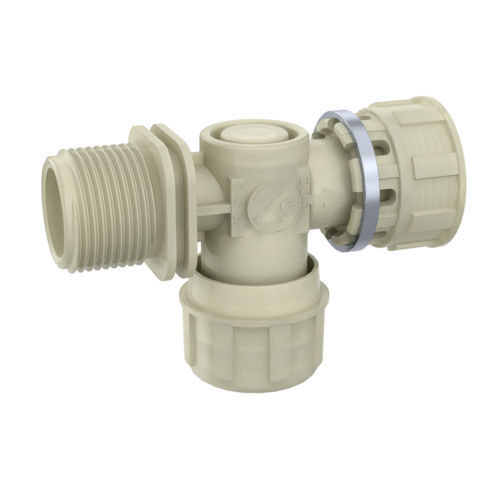

Screen irrigation filter 12.010.300 / ~.500

plasticY

The treatment of drinking water by the use of mechanical acting filters and their design is regulated in DIN EN 13443. The upstream mounted strainer will protect taps and other equipment against damages or malfunctions caused by suspended particles. There is no need to disassemble the strainer nor tool to replace the filter insert. It is recommended to mount the strainer with the filter insert pointing downwards, to avoid that collected dirt remains in the housing, during replacement of the insert. Type 12.010.300 is intended to be used for applications, in which valves, ball valves or others are already installed for use as shut off devices during replacement of insert. Type 12.010.500 integrates a shut off flow capability. The strainer is forcibly closed and an upstream shut off device is not required. Applications .for protection of ... .solenoid valves .sanitary fittings .flow meters .check valves .instantaneous water heaters Characteristics .replaceable filter elements, easy to clean .easy to assemble .high flow rate .temperature resistant up to 90°C .Operating pressure up to 10 bar .various connections available Technical data Type:dirt strainer Construction:mechanical filter Fitting position:prefereably filter element pointing downwards Media:Cold and heated potable water and physically and chemically similar media T-Medium:5 - 90 °C (194 °F max.) DN:10,0 mm Pressure range:10 bar max. Admissible pressure loss:6 bar max. Flow factor Kv:20 l/min @ 1 bar (12.010.300) 17 l/min @ 1 bar (12.010.500) Materials Body / inner parts:PA 66 others on request Stainless steel Sealings:EPDM
