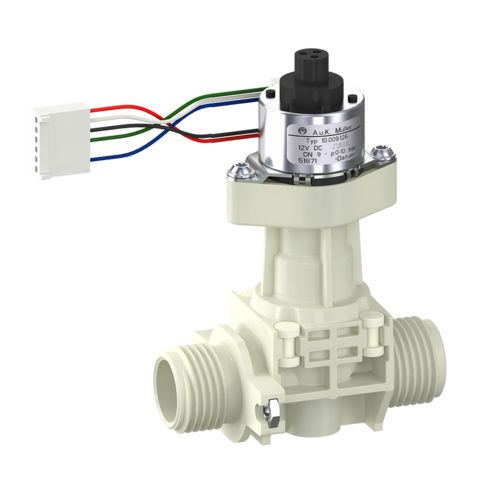

Irrigation valve 10.009.126 - ss

for controlregulatingshut-off

This valve is a servo-controlled 2/2-way valve of the nominal width DN 9 with continuously variable stroke. It is suitable for setting up controlled systems, for low flow values including complete shut-off function. The great advantage of this valve is the magnetic coupling of valve drive and actuating element. The actuating element located on the pressure side of the valve is thus hermetically separated from the valve drive by a static seal. A wear-prone dynamic seal is therefore no longer necessary and leakages are thus excluded at this point. The valve is specially designed for applications where the flow must be controlled continuously. In this way, the flow rate can be easily regulated depending on the required withdrawal quantity. It can also be used as a line regulating valve in heating systems, which automatically regulates the underfloor heating depending on the room air temperature, measured at any point in the room. Applications .Thermostatically controlled heating system .Instant flash heater .Hot / cold drink dispensers .Industrial appliances .Air conditioning .Agricultural implements .Cleaning systems .Temperature control devices .Dish washers .Washing machines .Water treatment installations Characteristics .Stepper motor controlled valve .stepper motor, medium separated .Wear-resistant due to magnetic coupling .Suitable for continuous operation .Medium temperature up to 90°C .No water hammer .Long term performance capability by the use of high quality materials .Hygiene benefit by 100% final testing with air Technical data Type:stepper motorized valve Function:continuously adjustable stroke Fitting position:any, preferably actor upwards
