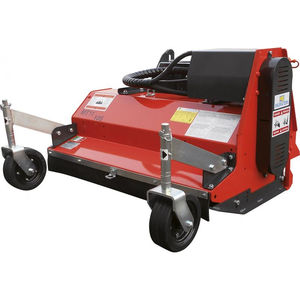

Mounted mower MR ID series
flailPTO-drivengrass

Mounted mower - MR ID series - MURATORI SpA - flail / PTO-driven / grass

Add to favorites

Compare this product

Characteristics

Mounting: mounted
Technology: flail
Other characteristic: PTO-driven, grass
Working width: 120 cm, 135 cm, 150 cm, 180 cm, 210 cm
(47.24 in, 53.15 in, 59.06 in, 70.87 in, 82.68 in)
PTO speed: 2,000 rpm, 2,240 rpm, 2,575 rpm
(12,566.4 rad.min-1, 14,074.3 rad.min-1, 16,179.2 rad.min-1)
Weight: 189 kg, 197 kg, 228 kg, 252 kg, 277 kg
(416.7 lb, 434.3 lb, 502.7 lb, 555.6 lb, 610.7 lb)

Description

Very versatile, this finishing mower is ideal for the grass maintenance. On the same base deck of this machine for grass care it is possible to fix conveyors for side discharge or rear discharge or "mulching". STANDARD EQUIPMENT: Oscillating base plate • Hydraulic motor with anti-cavitation valve complete with tubes and hoses (1/2") • 2 belt transmission with tensioner • Working depth adjustable through spacers • Built according CE rules • 2 tubes (1- outward and 1-return) L = 2000 mm. with 1/2" male quick coupling • 1 drainage tube L = 2400 mm. with 1/2" female quick coupling ON REQUEST: Kit connection plate (for different loaders) • Kit for quick front linkage (Cat. 0) • Hydraulic-motor with oil flow of 40 litres/min (10.6 Gal/min) (+/-10%) • Hydraulic-motor with oil flow of 50 litres/min (13 Gal/min) (+/- 10%) • Kit flow shutter valve (to be applied on loaders with flow rate between 40 and 60 liters/min) (10,6 to 16 Gal/min) • Central grease extension • Rubber wheels • Anti-scalp roller • Tyre wheels • Kit quick front linkage
