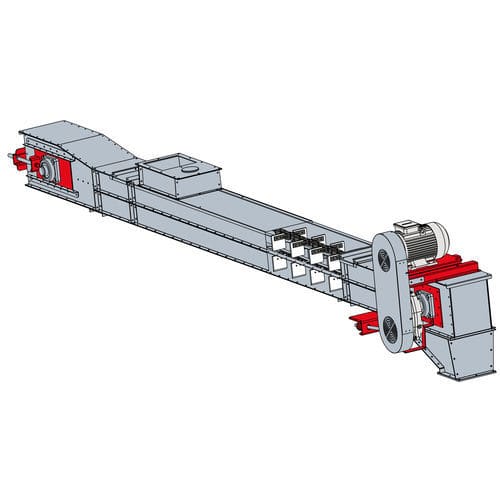

Chain conveyor E Series

for graininclined

E Series Chain Conveyors are designed to use the conveyor inclined at all angles between 15° and 60° and to carry products. Thanks to its double-deck, intermediate partition and special pallet structure, the product carried on this conveyor can be taken from one place and transferred to a higher place. Capacity: E Series Conveyors have different models and product options with capacities ranging from 50 t/h (70 m³/h) to 300 t/h (390 m³/h). Structural Feature: All of the YE series conveyors are manufactured from galvanized sheet metal and are all bolted and nut-connected. It has a long service life. In order for your conveyors to last longer, optional polyethylene sheets or non-corrosive steel plates can be reinforced on the optional base and side surfaces. The way these conveyors work is different from Y models. While the area used to transport grain is 80-85% in standard conveyors, it is around 40% in this type of conveyors. This results in a special capacity requirement and the use of a wider body. Grain-carrying pallets and their associated supports are different from standard conveyors. The motor power requirements of YE model conveyors are higher than Y model conveyors of the same length and capacity. The power required in this type of conveyor can vary depending on many parameters.
