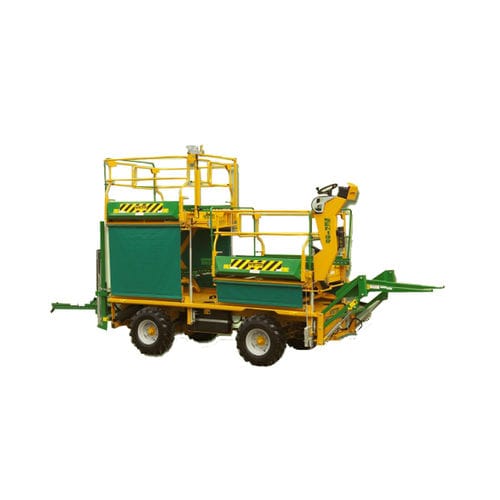

Orchard harvest trolley SENIOR

self-propelledadjustable-height

Diesel motor Lombardini LDW 903/1003 HP 21/24 diesel Lombardini LDW 1204/1404 HP 29/33 diesel Perkins 403C-11 / 403C-15 HP 28/35 diesel Traction Hydrostatic on 2 or 4 wheels. On request: hydraulic motor with variable cylinder capacity electrically controlled. Traction Electrical with 60 volt plant, 2 speed gear, automatic drive control. Working capacity:14 hours under the most difficult conditions. Recharged in 8 hours at 220/380 volts on request. Absorption 1,5 kw/h. Gears 2 gears + neutral in central position - electrical control from control panel. Steering with hydraulic power steering on the front wheels. Independent steering on the rear wheels (only 4 wd) With 3 positions selector independent and/or combined on request. Speed min 0 km/h max 15 km/h Brakes Hydraulic on the rear wheels- parking/negative brake on 4 wheels. On request hydraulic brakes in 4 wheels. Platforms for fruit picking n.1 front platform fixed/hydraulic lifting (on request) n.1 rear platform with hydraulic lifting n.1 front platform jolting with hydraulic lifting (on request) Lifting forks capacity max kg 500 Front and rear parallelogram-shaped elevation max mm 1300 Front and rear column shaped elevation max mm 1700 Rear column shaped elevation max mm 2550 Rolling for pallet boxes on the length of the machine with pallet boxes sliding also. Below the rear platform Pruning system air compressor C.500/600 lt Machine compression capacity kg 6000 The technical data are indicative and not binding.
