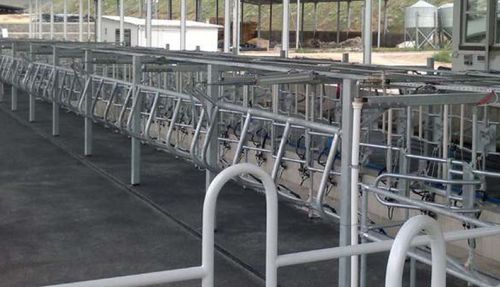

Cow milking parlor

herringbonerapid exit

TECHNICAL SPECIFICATIONS - All demountable hot dip galvanized rapid exit herringbone parlor stalls. - Double zig-zag pipes at each side to direct the cows for standing 30? to the pit. - Support posts at every stall with back plate. - Pneumatic entry gate, 50x700 mm cylinders. - Pneumatic swing up exit gates, 100x600 mm cylinders - Telescopicaly adjustable chess bar. - Hotdip galvanized kerb with 1/2" pipe on top edge, stainless steel sliding hose holders. - 100x80 mm profile connectio between main support posts. - 120x80 mm main support posts. - All construciton installation by cast and steel clamps, no welding required during installation - Two operator ladders - Benefit: Milker can see four teats of each milking cow during cluster attachment.
