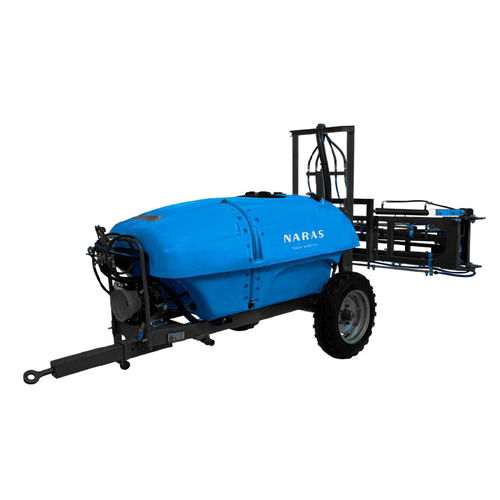

Towed sprayer NST
hydraulicfolding arms

Add to favorites

Compare this product

Characteristics

Mobility: towed
Technology: hydraulic
Other characteristics: folding arms
Capacity: 1,000 l, 1,600 l, 2,000 l
(264.2 gal, 422.7 gal, 528.3 gal)
Working width: 12 m, 15 m, 18 m
(39'04" , 49'02" , 59'00" )

Description

TECHNICAL SPECIFICATIONS NST - 1 - 2 - 3 - 4 Boom (Working) Width (m) - 12 - 12-16-18 - 12-15-18 - 12-15-18 Tank Volume (L) - 1000-1600-2000 - 1000-1600-2000 - 1000-1600-2000 - 1000-1600-2000 Tank Type - Fiberglass - Fiberglass-Polyurethane - Fiberglass-Polyurethane - Fiberglass-Polyurethane Boom Horizontal Movement - Manual - Manual - Hydraulic(Horizontal) - Hydraulic (Vertical) Boom Vertical Movement - Fixed - Hydraulic - Hydraulic - Hydraulic Boom Suspension - No - Yes - Yes - Yes Pump Flow Rate (L/min) - 80-105 - 105 - 105 - 105 Required Tractor Power (hp) - 65 - 65 - 65 - 65 PTO Speed (rpm) - 540 Clearance Type - Normal NST - 5 - 6 - 7 - 8 Boom (Working) Width (m) - 12 - 12-16-18 - 12-15-18 - 12-15-18 Tank Volume (L) - 1000-1600-2000 - 1000-1600-2000 - 1000-1600-2000 - 1000-1600-2000 Tank Type - Fiberglass - Fiberglass-Polyurethane - Fiberglass-Polyurethane - Fiberglass-Polyurethane Boom Horizontal Movement - Manual - Manual - Hydraulic(Horizontal) - Hydraulic (Vertical) Boom Vertical Movement - Fixed - Hydraulic - Hydraulic - Hydraulic Boom Suspension - No - Yes - Yes - Yes Pump Flow Rate (L/min) - 80-105 - 105 - 105 - 105 Required Tractor Power (hp) - 65 - 65 - 65 - 65 Clearance Type - High Extra - Tank Cleaning Unit Options 145 L/min Pump Pressure Filter with 2 Unit Pressure Filter with 4 Unit Thick Boom Promixer (Mixer From Outside of Tank)
