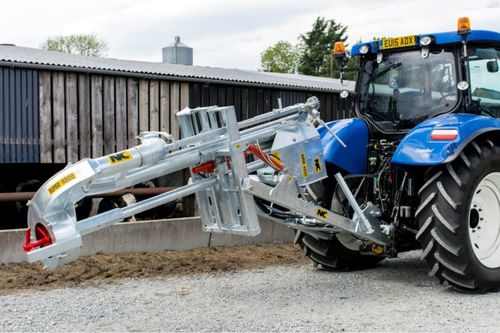

Slurry pump SUPER 4800

submersiblePTO-driven

The 4800 is designed for large scale contractors who would hâve a 160 HP tractor available for the task of mixing slurry with a flow capacity of up to 4800 gallons per minute (21,600 litres per minute). The main features are: • - Higher capacity gearbox - 1000 RPM • - Two point linkage c/w quick attach lifting bar • - Mixing spout revolves through a wide arc allowing slurry to be mixed in any direction including underneath tractor - The jetting nozzle can be locked in a range of up to 26 positions • - Depth can be adjusted in tank hydraulically using the centre ram • - Hydraulic control of centre pivoting action allows easier placement into tank • - Due to our unique arrangement of splitter box at pump outlet we hâve no loss of performance when using the pump to top fill • - Standard sizes which are available: 6'6" (1.98m); 7'6"(2.29m); 8'(2.44m); 9'(2.74m); - other sizes available on request • - Ail pumps are galvanised as standard - painted finish is available upon request • - Raising and lowering into tank is controlled hydraulically from tractor seat • - Machine can be parked in either sitting down or stand up position • - Static models without lift arms and height adjusting ram are also available in sizes up to 12' (3.66m) for mounting into tank
