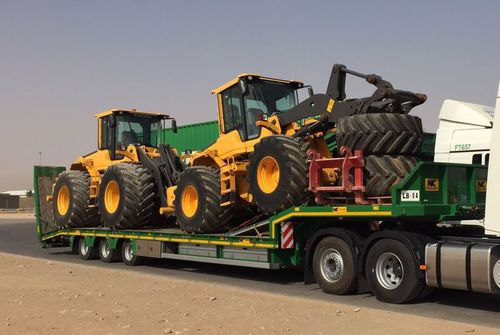

Flatbed trailer SEMI

mountedtandem axle3-axle

TANDEM AXLE STEP FRAME ON MECHANICAL SUSPENSION • - Gross Design weight 26000kg (28000kg Max) • - Axle capacity 9000kg (10000kg Max) • - Kingpin loading 16000kg • - 12.2m long • - 10mm rubbing plate at 1245mm height with 2040mm swing clearance • - Single 50mm bolt-on kingpin • - 127mm diameter Granning axles at 1360mm axle spread • - Granning mechanical suspension • - 235/75 x 17.5 twintyres • - Haldex EBS brakes with double diaphragm cylinders, automatic slack adjusters, park/shunt valve and standard "C" type couplings • - Machinery carrier type sloped neck. • - Heavy duty 2-speed landing legs • - Neck and floor covered with softwood • - 700mm wide by 1.7m long ladder style, spring assisted ramps with 17 degree loading angle and prop stand under beavertail • - Side impact protection, lockable toolbox, rope hooks & spray suppression etc. • - 24 Volt ISO standard electrical System wired via two 7-pin sockets. TRIDEM AXLE STEP FRAME ON MECHANICAL SUSPENSION • - Gross Design weight 40000kg (50000kg Max) • - Axle capacity 8000kg (10000kg Max) • - Kingpin loading 16000kg (20000kg Max) • - 13.6m long TANDEM AXLE STEP FRAME ON AIR SUSPENSION • - Gross Design weight 28000kg • - Axle capacity 9000kg • - Kingpin loading 14000kg • - 12.2m Overall length with 1520mm beavertail at 11 degrees • - 430mm high headboard with 45 degree corners
