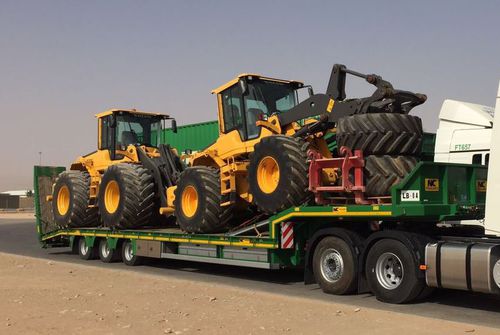

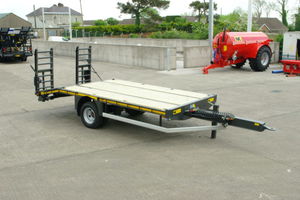

Flatbed trailer Semi

2-axle3-axleagricultural

• - Gross Design weight 26000kg (28000kg Max) • - Axie capacity 9000kg (10000kg Max) • - Kingpin loading 16000kg • - 12.2m long • - 10mm rubbing plate at 1245mm height with 2040mm swing clearance • - Single 50mm bolt-on kingpin • - 127mm diameter Granningaxles at 1360mm axie spread • - Granning mechanical suspension • - 235/75 x 17.5 twi n ty res • - Haldex EBS brakes with double diaphragm cylinders, automatic slack adjusters, park/shunt valve and standard "C type couplings • - Machinery carrier type sloped neck. • - Heavy duty 2-speed landing legs • - Neck and floorcovered with softwood • - 700mm wide by 1.7m long ladder style, spring assisted ramps with 17 degree loading angle and prop stand under beavertail • - Side impact protection, lockable toolbox, rope hooks 8< spray suppression etc. • - 24 Volt ISO standard electrical System wired via two 7-pin sockets.
