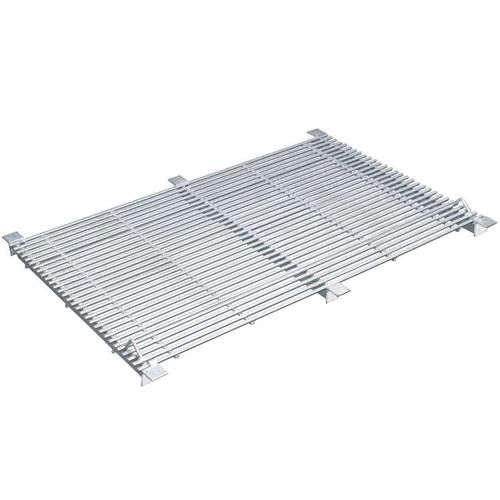

Steel floor panel Tri-Bar

for pig breedinghygienic

The V-shaped bars of the Nooyen steel Tri-Bar slatted floors ensure a perfect drain of manure and, consequently, excellent hygiene. This gives the flooring system an ammonia reducing effect. Because of their flat tops, Tri-Bar slats have an optimal standing surface and offer outstanding lying comfort. For pens housing gestation sows, an option is a self-supporting Tri-Bar floor system installed over the width above the manure channel. Angle irons are used to install the slats on the edges of the pit. By using the centre-to-centre dimension of the pens, these angle irons fall precisely under the side fences, creating no obstacle for the sows. The Tri-Bar floor system for individually housed sows is fitted as standard with a 120mm. tilting manure hatch positioned at the back. Another option is a complete Tri-Bar slatted floor. In addition to the standard 600 and 800 mm width sizes, the Tri-Bar slat system for pens housing gestation sows is available in customised sizes. The steel Tri-Bar slatted floor for gestation pens is available with 12 or 15 mm bar widths in combination with 12 or 15 mm slots.
