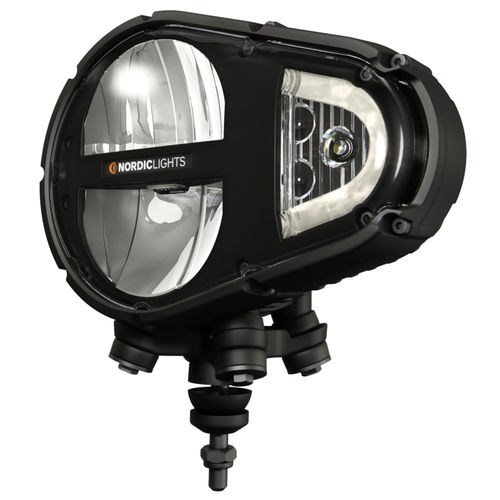

Front lamp SCULPTOR N6002 QD

positionbrakingblinking

NORDIC LIGHTS® Sculptor N6002 QD driving light integrates headlight, direction indicator, and position light in one unit. Unbeatable in its durability, this heavy-duty light is equipped with our integrated Quake dampening system, withstanding shocks of 60G and vibration of 15.3 Grms at 24–2000 Hz. The Sculptor N6002 QD has pedestal mounting and is very useful in agricultural, construction, and trucking applications. It has a dual-beam function with both low and high beams, which offers any vehicle using this light an amazing advantage. Key Features •All-in-One Durable Headlight •QUAKE dampening system •Dual-beam, Pedestal mounting Technical Data Nominal Voltage DC:12 - 24V Input Voltage DC:9 - 32V Power Consumption: High Beam 34W, Low Beam 17W, Park 2.7W, Indicator 17.5W Nominal Current at 12 / 24VLow Beam 0.7A @ 24V, 1.4A @ 12V, High Beam 1.4A @ 24V, 2.8A @ 12V Connector:Built-in Deutsch 6-pin Mount:Single Bolt M10 Shock:60G Vibration:15.3Grms 24-2000Hz Lens:PC Body / Housing:Aluminum Weight:2.5kg Salt Spray Test:ISO 9227 240H EMC: CISPR 25 Class 3, EN 13309, EN 61000-4-2, ISO 14982-2, ISO 13766, ISO 11452, ISO 7637-2, ISO 10605 ECE Approvals: Passing beam: ECE Regulation 112, class B for right & left hand traffic, Driving beam: ECE Regulation 112, class B, Reference number 25, Position light: ECE Regulation 7, Direction Indicator: ECE Regulation 6, class 1b (front), Direction Indicator: ECE Regulation 6, class 5 (side) Operating Temperatures:-40°C... +85°C (Overheat protected)
