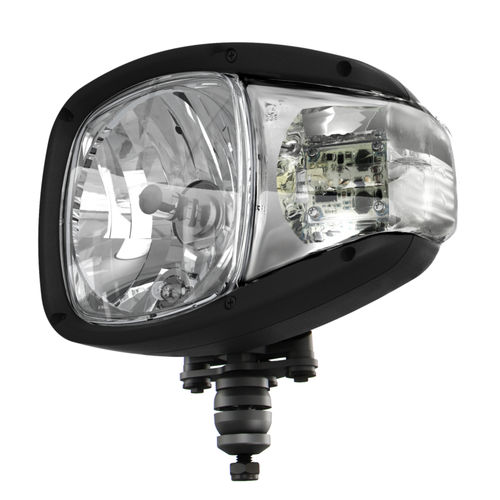

Front lamp N523

positionblinkingbraking

NORDIC LIGHTS® N523 LED driving light is an ideal heavy-duty headlight/indicator solution featuring a 3-point vibration dampener on the pedestal mount. The light integrates a halogen headlight and park light with an LED indicator in one assembly. The N523 LED is ECE-approved. Key Features •3-Point Vibration Dampening •All-in-One Durable Headlight •Pedestal Mount Technical Data Nominal Voltage DC:12V, 24V Input Voltage DC:8 - 16V, 16 - 32V Bulb ECE: Driving/Passing beam: 12V 60/55W H4 (P43t), Driving/Passing beam: 24V 75/70W H4 (P43t), Position: 12 or 24V W5W (W2.1x9.5d), Direction indicator: 9W, Park: 12 or 24V W5W (W2.1x9.5d) Connector: Built-in Deutsch 6-pin, Built-in AMP 6-pin, Grommet, Pigtail Deutsch 6-pin Mount:Single Bolt M10 Vibration:10.8Grms 18-600Hz Lens:Hardened Glass Body / Housing:Polyamide Weight:1.5kg IP Rating:IP54 Salt Spray Test:ISO 9227 240H ECE Approvals: Passing beam: ECE R112, Type B, Driving beam: ECE R112, Type B, Reference number 12.5, Front Position light: ECE R7, Direction Indicator: ECE R6, Category 1a and 5, EMC: ECE R10 Operating Temperatures:-40°C... +85°C Electronics:Isolated
