Front lamp N520positionblinkingbraking
Add to favorites
Compare this product
Characteristics
- Position
- front
- Function
- position, blinking, braking, low beam, high beam
- Shape
- other shapes
- Other characteristics
- LED, IP54, halogen
- Thickness
145 mm
(5.71 in)- Length
227 mm
(8.94 in)- Width
160 mm
(6.3 in)
Description

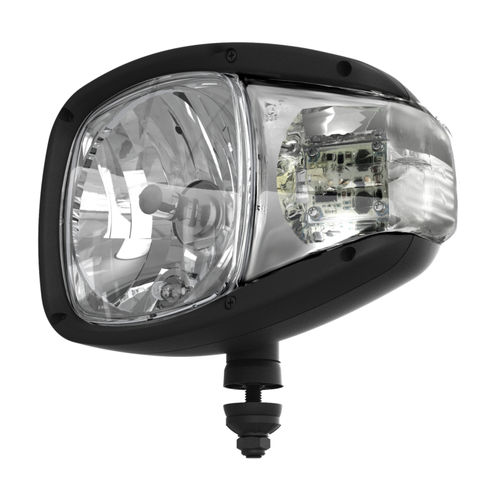

NORDIC LIGHTS® N520 LED driving light is an ideal heavy-duty headlight/indicator solution on a pedestal mount. The light integrates a halogen headlight and park light with an LED indicator in one assembly. The N520 LED is ECE-approved.
Key Features
•All-in-One Durable Headlight
•Pedestal Mount
Technical Data
Nominal Voltage DC:12V, 24V
Input Voltage DC:8 - 16V, 16 - 32V
Bulb ECE:
Driving/Passing beam: 12V 60/55W H4 (P43t), Driving/Passing beam: 24V 75/70W H4 (P43t), Position: 12 or 24V W5W (W2.1x9.5d), Direction indicator: 9W, Park: 12 or 24V W5W (W2.1x9.5d)
Connector:
Built-in Deutsch 6-pin, Built-in AMP 6-pin, Grommet, Pigtail Deutsch 6-pin
Mount:Single Bolt M10
Vibration:N/A
Lens:Hardened Glass
Body / Housing:Polyamide
Weight:1.5kg
Salt Spray Test:ISO 9227 240H
ECE Approvals:
Passing beam: ECE R112, Type B, Driving beam: ECE R112, Type B, Reference number 12.5, Front Position light: ECE R7, Direction Indicator: ECE R6, Category 1a and 5, EMC: ECE R10
Operating Temperatures:-40°C... +85°C
Electronics:Isolated
Catalogs
N520 HALOGEN
3 Pages
