Rear lamp N503frontpositionblinking
Add to favorites
Compare this product
Characteristics
- Position
- rear, front
- Function
- position, blinking, braking, low beam
- Shape
- other shapes
- Other characteristics
- LED, IP54, halogen
- Thickness
173 mm
(6.81 in)- Length
230 mm
(9.06 in)- Width
160 mm
(6.3 in)
Description

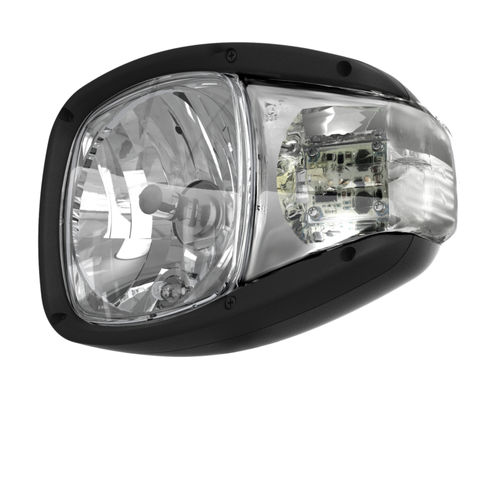

NORDIC LIGHTS® N503 LED driving light is an ideal heavy-duty headlight/indicator solution featuring a 3-point vibration dampener on the rear mount. The light integrates a halogen headlight and park light with an LED indicator in one assembly. The N503 LED is ECE-approved.
Key Features
•3-Point Vibration Dampening
•All-in-One Durable Headlight
Technical Data
Nominal Voltage DC:12V, 24V
Input Voltage DC:8 - 16V, 16 - 32V
Bulb ECE:
Driving/Passing beam: 12V 60/55W H4 (P43t), Driving/Passing beam: 24V 75/70W H4 (P43t), Position: 12 or 24V W5W (W2.1x9.5d), Direction indicator: 9W, Park: 12 or 24V W5W (W2.1x9.5d)
Connector:
Built-in Deutsch 6-pin, Built-in AMP 6-pin, Grommet, Pigtail Deutsch 6-pin
Moun:tSingle Bolt M10
Vibration:10.8Grms 18-600Hz
Lens:Hardened Glass
Body / Housing:Polyamide
Weight:1.5kg
Salt Spray Test:ISO 9227 240H
ECE Approvals:
Passing beam: ECE R112, Type B, Driving beam: ECE R112, Type B, Reference number 12.5, Front Position light: ECE R7, Direction Indicator: ECE R6, Category 1a and 5, EMC: ECE R10
Operating Temperatures:-40°C... +85°C
Electronics:Isolated
