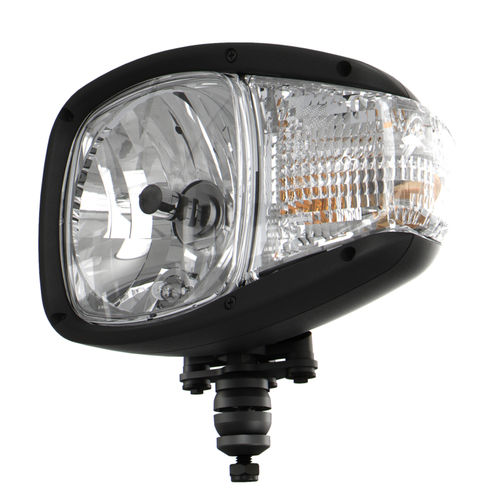

Halogen lamp N523
frontpositionblinking

halogen lamp
halogen lamp
halogen lamp
Add to favorites
Compare this product


Characteristics

Position
front
Function
position, blinking, braking, low beam, high beam
Shape
other shapes
Other characteristics
IP54, halogen
Thickness

145 mm
(5.71 in)

Length

230 mm
(9.06 in)

Width

181 mm
(7.13 in)

Description

NORDIC LIGHTS® N523 Halogen driving light is an ideal heavy-duty headlight/indicator solution featuring a 3-point vibration dampener on the pedestal mount. The light integrates headlight, indicator and park light in one assembly. The N523 Halogen is ECE-approved. Key Features •3-Point Vibration Dampening •All-in-One Durable Headlight •Pedestal Mount Technical Data Nominal Voltage DC:12V or 24V (ECE) Input Voltage DC:8 - 16V, 16 - 32V Bulb ECE: Driving/Passing beam: 12V 60/55W H4 (P43t), Driving/Passing beam: 24V 75/70W H4 (P43t), Position: 12 or 24V W5W (W2.1x9.5d), Direction Indicator: 12 or 24V PY21W (BAU15s), Park: 12 or 24V W5W (W2.1x9.5d) Connector: Built-in Deutsch 6-pin, Built-in AMP 6-pin, Grommet, Pigtail Deutsch 6-pin Mount:Single Bolt M10 Vibration:10.8Grms 18-600Hz Lens:Hardened Glass Body / Housing:Polyamide Weight:1.5kg Salt Spray Test:ISO 9227 240H ECE Approvals: Passing beam: ECE R112, Type B, Driving beam: ECE R112, Type B, Reference number 12.5, Front Position light: ECE R7, Direction Indicator: ECE R6, Category 1a and 5, EMC: ECE R10 Operating Temperatures:-40°C... +85°C
