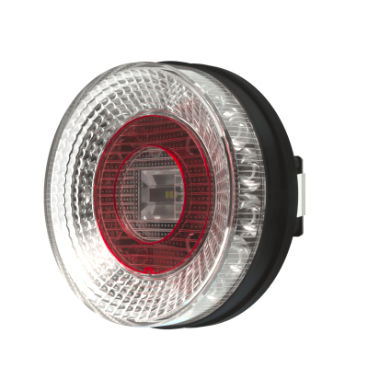

Rear lamp CORONA 400 SNAP-IN

leftrightposition

The Corona 400 Snap-in tail light integrates four functions in one unit: direction indicator, position light, stop light and reverse light. With the Corona 400 you’ll get the automotive look, but with heavy-duty standards. This LED tail light withstands shocks of 60 G and vibration of 15.3 Grms. This version of the Corona 400 is designed with a snap-in function which allows quick and easy mounting of the tail light without screws. Thanks to the clever design, the same version can be mounted on the left or the right side of the vehicle. Furthermore, you can choose the position of the direction indicator and the stop/position light to the upper or lower half of the tail light by turning it 180° when mounting the product. Key Features •Four functions in one unit •ECE approved •Superior electromagnetic compatibility (CISPR 25 Class 5) Technical Data Nominal Voltage DC: 12V, 24V Input Voltage DC:9 - 32V Power Consumption 12 / 24V: Direction indicator 21W, Position light 0.2 / 0.5 W, Stop light 1.5 / 3.0 W, Reverse light 2.0 / 4.0 W Nominal Current at 12 / 24V: Direction indicator 1.5A / 0.75A, Position light 15 mA, Stop light 110 mA, Reverse light 130 mA Connector:Built-in Deutsch 6-pin Mount:Snap-in Shock:60G Vibration:15.3Grms 24-2000Hz Lens:PMMA Body / Housing:Aluminum Weight:0.5kg Salt Spray Test:ISO 9227 240H EMC: CISPR 25 Class 5, EN 13309, EN 61000-4-2, ISO 14982-2, ISO 13766, ISO 11452, ISO 7637-2, ISO 10605 ECE Approvals: Direction Indicator: ECE R6 Cat 2a, Position light: ECE R7 Cat R1, Stop light ECE R7 Cat S1, Reverse light ECER23 Operating Temperatures:-40°C... +85°C (Overheat protected) Electronics:Isolated
