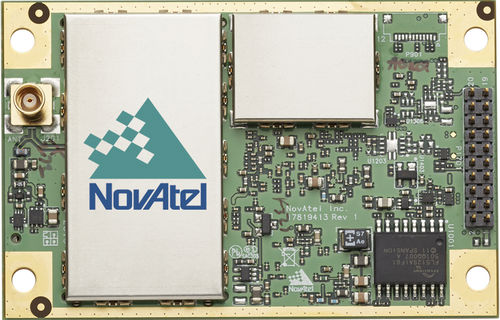

GNSS receiver OEM719™ Multi-Frequency GNSS Receiver

The OEM719 is a multi-frequency, backward compatible Global Navigation Satellite System (GNSS) receiver. It is form factor and pin compatible with NovAtel’s popular OEM615™ and OEM617™ form factors. With 555 channels available, the OEM719 is capable of tracking all current and upcoming signals, including GPS, GLONASS, Galileo, BeiDou, QZSS and IRNSS. The OEM719 is scalable to offer sub-meter to centimeter level positioning and is field upgradable to all OEM7® family firmware options. Options include NovAtel CORRECT™ with RTK for centimetre level real-time positioning, GLIDE® for decimetre level pass-to-pass accuracy and SPAN® for continuous 3D position, velocity and attitude. Features -555 channel all-constellation multi-frequency positioning solution -Multi-channel L-Band supports TerraStar correction services -Advanced interference visualization and mitigation features -Firmware solutions including RTK, GLIDE®, STEADYLINE®, SPAN® and ALIGN® -Simple to integrate, small form-factor with 20 g vibration performance rating -Compatible with existing OEM719 integrations Attributes System TypeBoard General InfoLength (mm)71 Width/Diameter (mm)46 Height (mm)11 Weight (g)31 Typical Power Consumption0.9 Signal TrackingGPSL1 C/A, L1C, L2C, L2P, L5 GLONASSL1, L2, L3, L5 BeiDouB1l, B1C, B2a, B2l, B3l GalileoE1, E5 AltBOC, E5a, E5b, E6 IRNSSL5 SBAS L1, L5 QZSSL1 C/A, L1C, L2C, L5, LEX L-Bandup to 5 channels Number of Com PortsLVCMOS3 CANBus2, USB 1 PerformanceAccuracy(RMS) Single Point L11.5 m Single Point L1/L21.2 m SBAS60 cm DGPS (code)40 cm TerraStar-C PRO2.5 cm, TerraStar-L 40 cm RTK1 cm + 1 ppm
