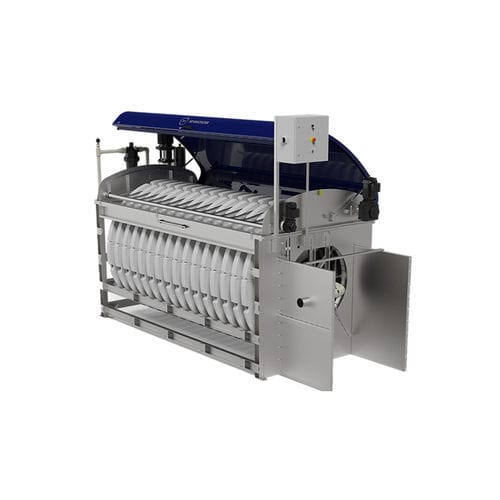

Disc Aquaculture filter 19 & 22-series

steelself-cleaningmechanical

The NP Discfilter 19 & 22-series are based on the same modular design as our successful NP Drumfilter series, plus new developments to adapt the disc filter technology for aquaculture criteria. These developments make the NP Discfilter the most optimized disc filter solution on the aquaculture market. The filter has several filter media discs attached to a drum. Each disc consists of several filter cassettes of a well-proven design that also simplifies maintenance. The filter is rotated by a helical worm gear motor via a lubricant-free chain, running on the peripheral of the centre drum. This feature reduces stress on the drum structure and drive arrangement, leading to lower power consumption and reduced maintenance costs. The optimized way of filtering water The NP Discfilter is a mechanical self-cleaning filter for removal of suspended solids, specially designed for aquaculture applications. The inflow (brown arrow) enters the filter drum and is distributed into the disc segments by gravity. The filter media attached to the discs separates the solids from the inflow and allows the filtrate (blue arrows) to pass through. The separated particles are removed with the backwash system and is flushed into the sludge trough (red arrow). All NP Discfilters are by default equipped with oscillating backwash spray header (”Moving Backwash”). This function improves the cleaning and life span of the filter cloth and reduces backwash water consumption by 20%. The filter cloth is normally made from polyester, or stainless steel if required. The filter opening can be chosen from a wide range, normally from 10 to 100μm.
