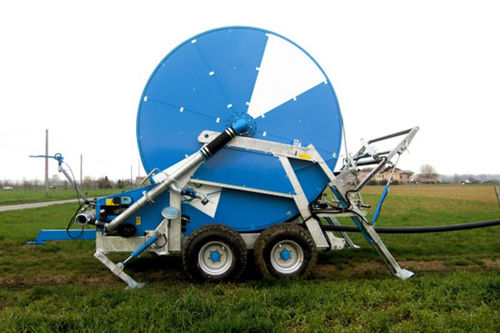

Irrigation hose reel FV10

turbine-drive

Great stability, ideal for handling pipes of large dimensions. The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system. The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses. Standard equipment -4 wheel chassis -Hydraulic lifting device of trolley -Telescopic hydraulic feet -Hydraulic lifting of drawbar -4 speed VR gearbox -Power take off -Turbine flanged on the gearbox with double built-in by-pass -Flexible connection pipe -Raingun -Set of nozzles EXPLORER raingun from Ø 28 to Ø 40 -Galvanized raingun trolley mounted on variable track wheels for laying down the hose on the tractor wheel track with automatic gun-cart stabilizer leg -Pressure gauge (glycerine bath) -Winding handle -Computer Aqua System -Solar panel -Hose retraction by double chain -Hydraulic system by rapid couplings to tractor -Hydraulic lateral reverse pull -Safety guards -4 wheels 15.0/70-18 148A8 14PR 6F -Double stabilizer legs mounted on drawbar for secure anchoring during working phase -Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints -Safety guards made of steel, swaged galvanized and painted
