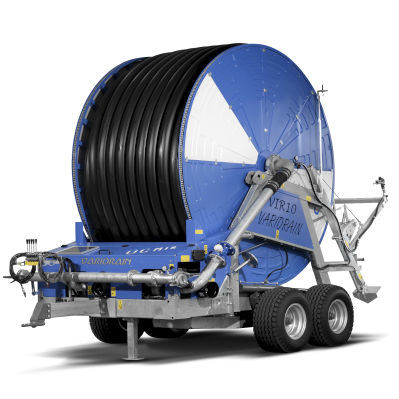

Irrigation hose reel VIR10A

turbine-drivetowed

Great stability, ideal for handling pipes of large dimensions. The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system. The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses. Standard equipment • 4 wheel chassis • Hydraulic lifting device of trolley • Hydraulic rotation of turntable • Telescopic hydraulic feet • Hydraulic lifting of drawbar • Power take off • 4 speed VR gearbox • Turbine flanged on the gearbox with double built-in by-pass • Flexible connection pipe • Galvanized raingun trolley mounted on variable track wheels • Pressure gauge (glycerine bath) • Raingun • Set of nozzles EXPLORER raingun from Ø 28 to Ø 40 • Set of nozzles LANCER raingun from Ø 30 to Ø 40 • Winding handle • Computer Aqua System • Hose retraction by double chain • Hydraulic system by rapid couplings to tractor • Safety guards • 4 wheels 15.0/70-18 148A8 14PR 6F • Safety guards made of steel, swaged galvanized and painted • Galvanized double water inlet • Water inlet with Bauer 133 • Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints • Polyethylene hose made from unadulterated raw material
