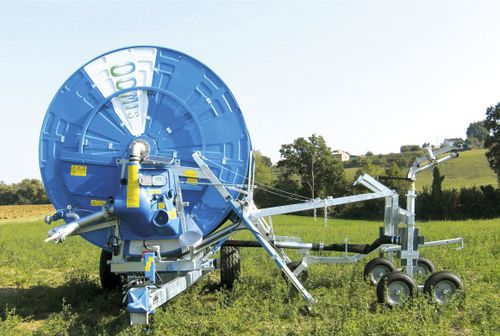

Irrigation hose reel R4A

turbine-drive

The best-sellers of our range. Robust, high-performing irrigators with low running and maintenance costs. Appreciated and used by agriculturalists the world over for their versatility and user-friendliness. The Turbo Speed system reduces turbine load loss and, at the same time, gives access to a range of machine speeds even with very low flows and inlet pressures. Ocmis innovation is there for all to see. Standard equipment -Hydraulic lifting device of trolley -Telescopic hydraulic feet -4 Speed gearbox -Power take off -Turbine flanged on the gearbox with built-in by-pass -Flexible connection pipe -Galvanized raingun trolley mounted on variable track wheels -Raingun -Set of nozzles - different diameters -Winding handle -Galvanized double water inlet -Speed equalizer -Tachometer -Pressure gauge (glycerine bath) -Mechanical lifting of drawbar -Safety guards -Hot galvanized chassis and turret -Reel coated by epoxy resin and painted with polyurethane paint -Safety guards made of steel, swaged galvanized and painted -Polyethylene hose made by unadulterated raw material
