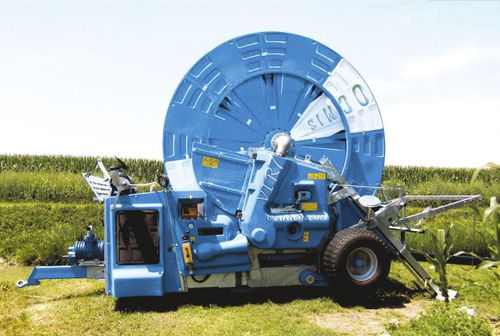

Irrigation hose reel VIR7M

turbine-drive

Irrigators with motor pump mounted on the machine frame for direct suction from channel, or as booster pump. The gearbox with synchronized speeds is the nerve centre of the new generation machines that mount the Vario Rain system. The competitive advantages are numerous: water saving, user-friendliness, and no significant pressure losses. Standard equipment -Hydraulic lifting device of trolley -Hydraulic rotation of turntable -Hydraulic lifting of drawbar -Telescopic hydraulic feet -4 speed VR gearbox -Power take off -Turbine flanged on the gearbox with built-in by-pass -Flexible connection pipe -Galvanized raingun trolley mounted on variable track wheels -Raingun -Set of nozzles REFLEX raingun from Ø 24 to Ø 32 -Set of nozzles EXPLORER raingun from Ø 28 to Ø 40 -Pressure gauge (glycerine bath) -Winding handle -Speed equalizer -Tachometer -Hydraulic system by rapid couplings to tractor -Safety guards -2 wheels 12.5/80-15.3 14PR 6F -Safety guards made of steel, swaged galvanized and painted -Galvanized double water inlet -For hose diam. 100-110-120-125 water inlet Bauer Ø 108 -For hose diam. 135-140-150 water inlet Bauer Ø 133 -Hot galvanized chassis and reel coated by epoxy resin and painted with polyurethane paints
