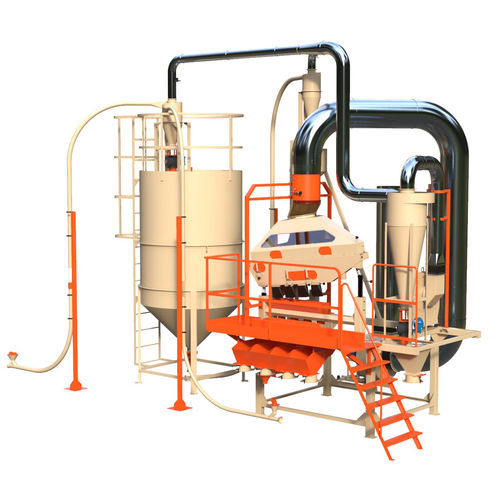

Feed-mill unit UOK-1

Aggregate unit for groats enrichment UOK-1 is designed for purification of grain products from impurities which are difficult to separate. The UOK-1 can be used for processing of millet to increase its grade, corn groats to separate particles of germ and shell, as well as grains of small-seeded crops to reduce their clogging. Enrichment of graots and other cereal products in UKO-1 is realized by vibration-pneumatic separation by pneumatic sorting table of SPS . The aggregate unit for groats enrichment UOK-1 is supplied with metal framework, ladder and service platform, hoppers, aspiration system, pneumatic conveying system, electrical part and automatics. Since the UOK-1 undergoes the control assembly stage during production, its complete assembly and commissioning at the place of operation takes no more than two days. The need for cutting, welding and drilling of metal at the place of assembly is completely eliminated. Aggregate unit for for groats enrichment UOK-1 can be easily integrated with aggregate multipurpose groats mill “OPTIMATIK” into the unified transport and technological complex. The UOK-1 operates in automatic mode. Its operation is controlled by an operator from the central control panel. In case of operation of the UOK-1 with the multipurpose groats mill “OPTIMATIK”, their operation is ensured by the same operator
