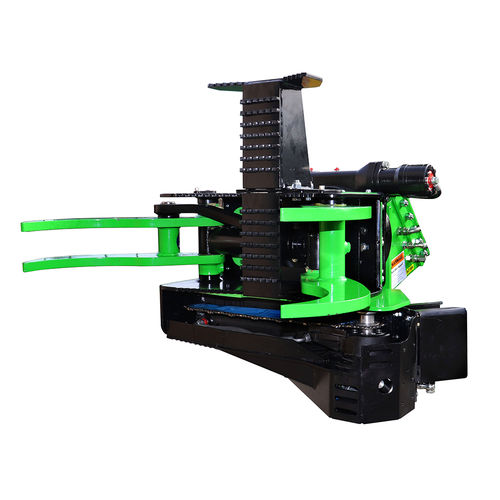

Forestry log grapple GS400

for excavatorswith chainsaw

Developed for precision tree felling, for sectioning trees in several parts or for the simple handling, the OMEF “GS” series can be applied both on operating machines with fixed adapter and on cranes thanks to the “OMEF Swing” system. xcavator class weight - 5 – 8 tons Attachment weight - 390 Kg | 860 lbs Maximum trunk hold - 950 mm | 37,5" Maximum workload - 1500 kg | 3305 lbs Max cut diameter - 400 mm | 16" Oil pressure - 180 – 250 bar | 2610 – 3625 psi (min-max) Hydraulic flow - 30 – 60 l/min | 8 – 16 gpm (min-max) Saw Chain - .404" 1,6 mm Engine - Motore a pistoni 6 cc Control - A) Rotazione B) "Tilt" System
