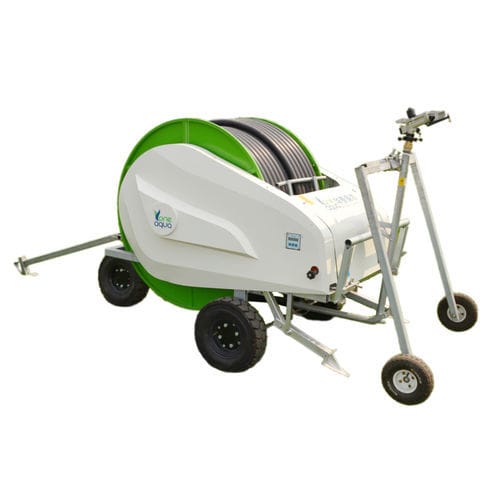

Irrigation hose reel Aquago II
turbine-drivetowed

Irrigation hose reel - Aquago II - Oneaqua China  - turbine-drive / towed
Irrigation hose reel - Aquago II - Oneaqua China  - turbine-drive / towed
Irrigation hose reel - Aquago II - Oneaqua China  - turbine-drive / towed - image - 2
Irrigation hose reel - Aquago II - Oneaqua China  - turbine-drive / towed - image - 3
Add to favorites
Compare this product


Characteristics

Application
for irrigation
Drive type
turbine-drive
Other characteristics
towed
Hose diameter

Min.: 50 mm
(1.97 in)

Max.: 60 mm
(2.36 in)

Hose length

Min.: 120 m
(393'08" )

Max.: 170 m
(557'08" )

Description

The brand new model Aquago II series hose reel irrigator is developed by European research team exclusively on the basis of meeting irrigation demands in China, which allows the users to irrigate when it is needed for a minimum of investment costs and enlarges the space for selection. ◇ Aquago II series hose reel irrigator is composed of 50/55/60 three models. The water flow ranges from 6.8 to 21 m³/h, the inlet pressure from 0.25 to 0.47 MPa, PE pipe diameter from 50 to 60 mm, the length from 120 to 170 m. It irrigates 8 to 26 hectares per set. ◇ Newly designed turbine increases the performance by 10%. ◇ Easy handling and convenient transport. ◇ Newly designed speedometer shows the retraction speed of PE pipe. ◇ Service life is over 15 years. Accurate driving of turbine Energy-efficient and stepless speed regulating of the retraction Chain drive The machine runs more stable without noise. Advanced anti-rotation brake device Changed the previous brake device to make the PE-pipe pull-off easier and avoid the drum rotate reversely. New cover protection Ensures precise reeling of the irrigation pipe in all layers, winding for winding. Sprinkler cart High clearance and adjustable track width reduce damages to delicate crops. New cover protection The new cover is made of FRP, providing more protection to the machine. LCD speedometer(optical) Display the speed for precise regulation of the precipitation rate. High retraction speed of sprinkler even at low flow Easy adjustment of retraction speed up to 35m/h for applying the precipitation rate as demand. Big size tires 5.00-8 big size tires for easy movement even on rugged and muddy land.
