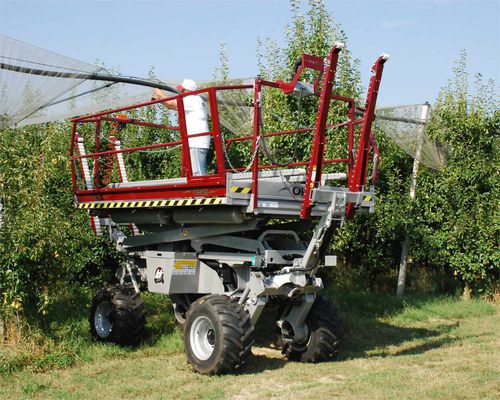

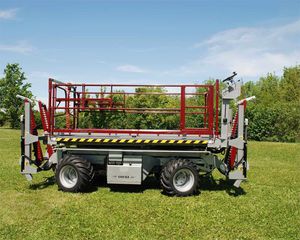

Orchard harvest trolley GRANDINE ECO series

self-propelledadjustable-height

Electric fruit harvester suitable for harvesting all fruit such as apples, pears, cherries, peaches, apricots, plums, kiwis, plums, etc. Moreover, the fruit harvester is used for closing the anti-hail nets, for pruning, for thinning. The model "Grandine" is suitable for working in the plain, its main feature is the adjustment of the height from the ground as preferred from the operator. The adjustment is made by 4 mechanical cylinders positioned on the wheel arm. TECHNICAL DATA MACHINE WHEELS HEIGHT ADJUSTABLE IN THREE POSITIONS Standard FRUIT HARVESTER RAISING KIT FOR WHEELS HEIGHT POSITIONING (ONLY IF THE TOWING KIT IS NOT CHOSED AS OPTIONAL) Standard 2 WHEELS AUTOMATIC STEERING WITH SEQUENCY SELF-CENTRING RETURN Standard3 DIFFERENT TYPE OF STEERING (ONLY 4RST) Standard SLIDING PALTFORMS HYDRAULIC OPENING Standard PARAPETS TOTALLY OVERTURNABLE Standard STOPPING STRAP CE APPROVED Standard BATTERIES CHARGER Standard VERTICAL SCALE Standard CONTROLS CONSOLE “REVERSE” FOR A GUIDE EITHER FRONT OR REAR Standard TYRES 26X12,5-15 TRACTOR Standard 2RM 4RST Optional 4RM 2RST Optional 4RM 4RSTOptional PANTOGRAPH ELEVATOR WITH ROLLER GATE (FRONT AND/OR BACK MOUNTED) Optional PANTOGRAPH. ELEVATOR’S ROTATION FOR LOADING/UNLOADING IN SLOPE 25° RIGHT AND 25° LEFT Optional ADDITIONAL BINS SUPPORT WITH ROLLER GATE FOR PANTOGRAPH ELEVATOR Optional
