Rear-mount mulcher PRIMATIST GS series
hammerkniferoadside

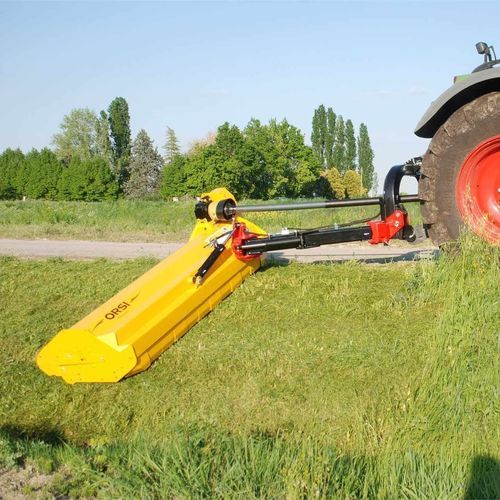

Rear-mount mulcher - PRIMATIST GS series - ORSI GROUP SRL - hammer / knife / roadside
Rear-mount mulcher - PRIMATIST GS series - ORSI GROUP SRL - hammer / knife / roadside
Rear-mount mulcher - PRIMATIST GS series - ORSI GROUP SRL - hammer / knife / roadside - image - 2
Rear-mount mulcher - PRIMATIST GS series - ORSI GROUP SRL - hammer / knife / roadside - image - 3
Add to favorites
Compare this product


Characteristics

Type
rear-mount
Technology
hammer, knife
Applications
roadside, grass
Number of hammers
16 hammers, 20 hammers
Number of knives
48 knives, 60 knives
Other characteristic
PTO-driven, hydraulic, for tractors, folding
Cutting width

181 cm, 201 cm, 221 cm, 253 cm
(71.26 in, 79.13 in, 87.01 in, 99.61 in)

Rotational speed

540 rpm
(3,393 rad.min-1)

Tractor power

Max.: 100 ch
(100 hp)

Min.: 60 ch
(60 hp)

Weight

Max.: 900 kg
(1,984.16 lb)

Min.: 745 kg
(1,642.44 lb)

Description

Lateral shredder with Big Reach suitable for cleaning road docks, ditches, embankments, gardens and green areas. Equipped with hydraulic inclination with reaching vertical position up to 90 ° for pruning and shredding of hedges. Recommended for mowing grass, pruning and twigs up to 6cm of diameter. Suitable for working both rear and lateral to the tractor. The chopping equipment consists of a double internal frame built entirely in HARDOX® (wear-resistant and anti-abrasive steel). Double position of the back roller: 1) self-cleaning to allow the shredded product to be unloaded behind the roller; the power consumption of the tractor is thus reduced to a minimum with absorption reduction in consumption. 2) rear, to further retain the product inside the cutting device and then chop it further. The 2 rows of counter-knives installed inside guarantee excellent cutting quality in both 2 positions of the rear roller. STRONG POINTS DOUBLE HARDOX SKIN FRAME WITH EXTERNAL SIDE BELVEL ROTOR "VENTILATOR" ELECTRONICALLY BALANCED Forest tool supports tools casted in Boron steel 3 YEARS WARRANTY on cast metal parts REAR ROLLER PROF Ø 140 MM Back roller Prof Ø 140 MM with 4 bearings with tapered rollers, mud scraper and interchaneable central part with 2 positions: 1) Self-cleaning 2) Rear FREE WHEEL IN THE GROUP DOUBLE STATIC KNIFE Increased rows of counter knives hold the material in for more complete shredding AUTOMATIC BELTS TENSIONERS INTERNAL ROTOR BEARINGS GREAT SIDE OUTREACH, UP TO 40 CM MORE OUTPUT OSCILLATING BEARINGS WITH DOUBLE ROLLERS RACK SELF-CLEANING REAR ROLLER SAFETY AND SELF LEVELLING BREAKWAY COUPLING
